Tufting-Gun Maintenance and Safety Guide
Quick answer: Inspect the gun, power supply, cable, plug, needle and moving parts before every session. Keep the machine disconnected from power during cleaning, threading, adjustments and part replacement. Remove lint regularly, use only model-compatible parts and follow the instructions supplied with your exact machine. Stop immediately if the gun behaves, sounds, smells or heats differently from normal.
Before every tufting session
- Disconnect power and inspect the cable, plug and power supply for damage.
- Check that screws, guards and external parts are secure.
- Inspect the needle and scissors for visible damage or misalignment.
- Confirm the yarn path is free from tangles and cannot catch the machine.
- Secure the frame and clear the floor of cables and offcuts.
- Keep hands, hair, jewellery and loose clothing away from moving parts.
- Test the gun on scrap cloth before entering the finished design.
Cleaning after use
- Switch off and disconnect the power.
- Remove yarn from the feed path.
- Use a soft brush or suitable low-pressure cleaning method to remove loose lint.
- Clean around accessible moving areas without forcing debris deeper into the mechanism.
- Wipe external surfaces with a dry or manufacturer-approved method.
- Store only after the machine is clean and dry.
Do not immerse the gun, spray liquid into the mechanism or use compressed air in a way that drives fibres into bearings or electrical parts. Follow the supplied instructions where they differ from general guidance.
Lubrication and adjustments
Lubricate only the points, amounts and intervals specified for your model. Too much oil can attract lint and migrate onto cloth or yarn. Do not adjust scissor timing, pile height or internal mechanisms based on instructions for a different gun.
Wear parts to inspect
| Part | Watch for | Response |
|---|---|---|
| Needle | Bends, burrs, chips or repeated cloth damage | Stop and replace with the correct compatible part |

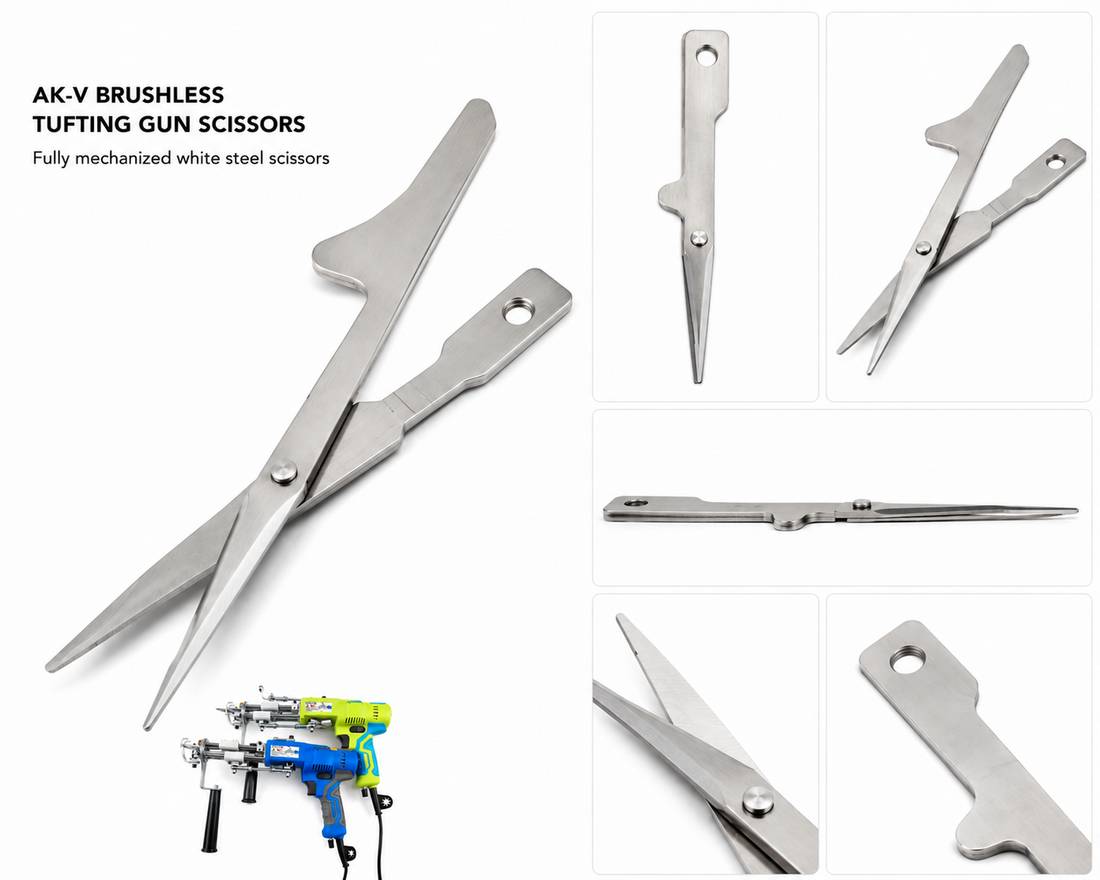

| Scissors | Poor cutting, snagging or visible damage | Clean, inspect alignment and replace when required |
| Guide and foot | Looseness, rough edges or abnormal movement | Stop use and check the model instructions |
| Power cable | Cuts, crushing, exposed wire or heat damage | Do not use; arrange qualified assessment or replacement |
| Fasteners | Loosening from vibration | Secure only as directed and never while powered |
Safe working technique
Keep both your body and cable clear of the needle path. Use a frame height that allows a neutral stance. Take breaks before grip fatigue affects control. The gun should move through the cloth under controlled pressure; forcing, twisting or pulling it sideways increases the chance of damage.
When to stop using the gun
- New grinding, knocking or irregular sounds
- Burning smell, smoke, sparks or unusual heat
- Intermittent power or a damaged cable
- Repeated jamming after yarn and cloth causes are ruled out
- A bent needle, damaged scissors or loose moving assembly
- Any electrical exposure or liquid ingress
Disconnect it and seek advice from the supplier or a suitably qualified repairer. Do not keep testing a machine that shows an electrical or mechanical fault.
Storage
Store the gun dry, clean and protected from dust and impact. Avoid resting the machine on the needle or front assembly. Keep parts labelled by model so incompatible scissors, needles or power supplies are not mixed.
Frequently asked questions
How often should I clean a tufting gun?
Remove lint after each working session and inspect before every use. A busy studio needs more frequent attention than occasional home use.
Can I oil any moving part?
No. Use only the lubricant and points specified for the exact model. Unapproved lubricant or excessive oil can create faults and contaminate materials.
Why is the gun cutting poorly?
Possible causes include tangled feed, worn scissors, alignment issues, incorrect yarn or unsuitable technique. Disconnect power before inspection and avoid internal adjustments unless the model instructions clearly cover them.
